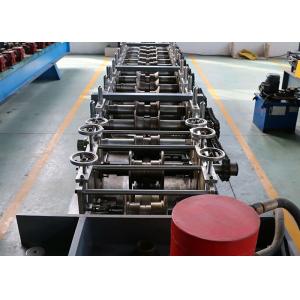

Professional Shutter Door Frame Roll Forming Machine Production
Line
The roll forming machine can process Galvanized roller shutter door
slat in bath and the desgin are in fashionable and widely used.
Rolling Shutter Slat Machine With the highest security in rolling
fire doors, Rolling Steel Doors, Fire Doors, rolling shutter,,
offshore rolling fire doors, storm doors, Rolling steel hurricane
doors, smoke doors, air-leakage doors, counter shutters, insulated
doors, rolling sound doors, and storm shutters. rolling steel
doors, rolling steel fire doors, rolling fire shutters, insulated
fire doors, rolling steel grilles.
Specifications
| 1. | Power requirement | Type | 380v/3ph/50hz |
| 2. | Forming speed(m/min) | 15m/min max |
| 3. | Forming stations | 20 stations |
| 4. | Thickness | 0.5 mm-1.2mm |
| 5. | Material of rollers | CR15 |
| 6. | Thickness of structure | 20mm |
| 7 | Forming shaft diameter(mm) | 70 |
| 8 | Drive | Gear |
| 9 | Type of cutting | Hydraulic cutting |
| 10. | Control system | PLC and inverter control |
| 11. | Install dimension(depend on the final design) | 9.8m×0.85m×1.2m |
| 12. | Total weight (Approx) | 4.5T |
| 13. | Screen | Text screen /touch screen |
Machine list:
| Number | Machine list | Number |
| 1 | 5 tons hydraulic decoiler | 1 set |
| 2 | Feeding&leveling device | 1 set |
| 3 | Gear box drive system | 1 set |
| 4 | Main forming machine | 1 set |
| 5 | Curving device | 1 set |
| 6 | Hydraulic Cutting device | 1 set |
| 7 | Auto stacker 6 meters | 1 set |
| 8 | PLC control system | 1 set |
| 9 | Hydraulic station | 1 set |
Technological process:
HIGH DUTY STRUCTURE :The sturcture we use for this machine has the higher duty
mechanical behavior;
ROLLERS: The rollers processing by twice CNC machining and quenched, HRC
58-62;
CUTTING & PUNCHING :Cutting to length and punching the lock hole&angle edge;Mold
material is Cr12 Mov;
Details of three parts ,pls check the pictures below
Our Advantage
1 . More individal service
If you have requrest of your using problem, like running space,
operation program language. We can do better.
2 . Better after-sale service
Life long response within 12 hours , while you have question of
running machine,
3 . More than 10 year working life
Our machine can steady running at least 10 years.Based on this
situation, you could have stable productivity and avoid from
fixing.
